Lasers, LEDs, Diodes, Transistors and all other modern electronic components are designed and manufactured under one roof! From mirrors for complex laser systems to the next generation of gas detectors and spectrophotometers. The FTMC's semiconductor device manufacturing and development line enables component delivery and end device prototyping.

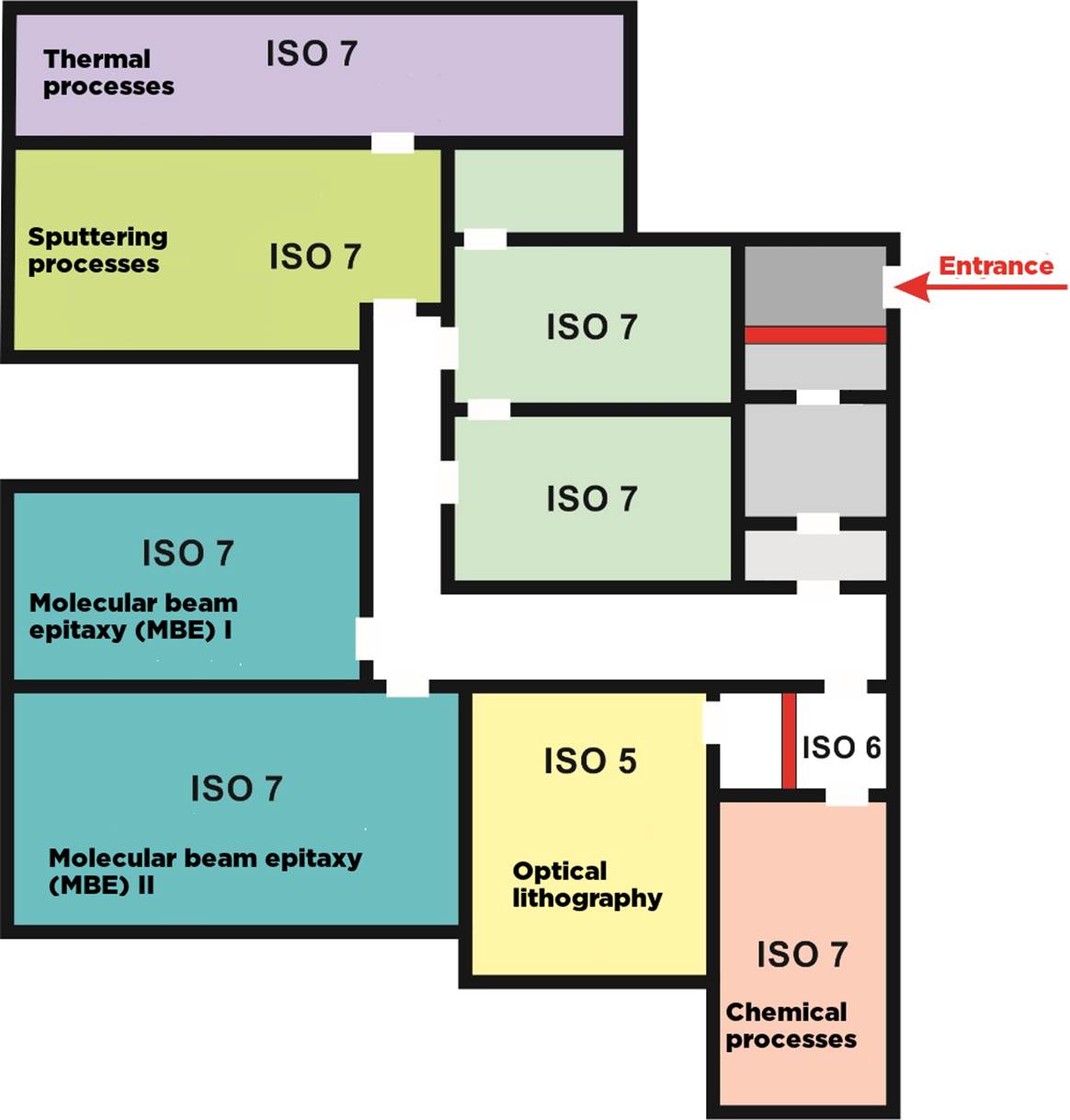

Rent of clean rooms. The facilities available comply with ISO5 (50 m²) and ISO7 (352 m²) clean room requirements. Layout of the premises

Two molecular beam epitaxy (MBE) machines capable of producing III-V material group structures on up to 3'' wafers.

Complete production and prototyping line for optoelectronic devices and semiconductor lasers.

Production of Quantum Cascade Lasers (QCL), wavelength upon request:

• InGaAsBi on InP;
• GaAs / GaAsBi on GaAs;
• GaAs / AlGaAs on GaAs etc.

Production of quantum structures, wavelength on request (from 760 nm up to 20 µm):

• InGaAs / AlAsSb on InP (strain balanced);
• InGaAs / AlInAs is InP (lattice matched and strain balanced);
• InGaAs / InGaAs is InP (strain balanced);
• InAs / AlSb is InAs (nearly lattice matched);
• InAs / Al (As) Sb is InAs (lattice matched).

• Magnetron sputtering system;
• Electron beam system (E-Beam);
• PECVD system for SiNx, SiO2, Al2O3, SiC and graphene growth.

• Laser lithography, with 600 nm resolution;
• Karl Suss MJB3 Mask Target with 1.5 µm Resolution.
